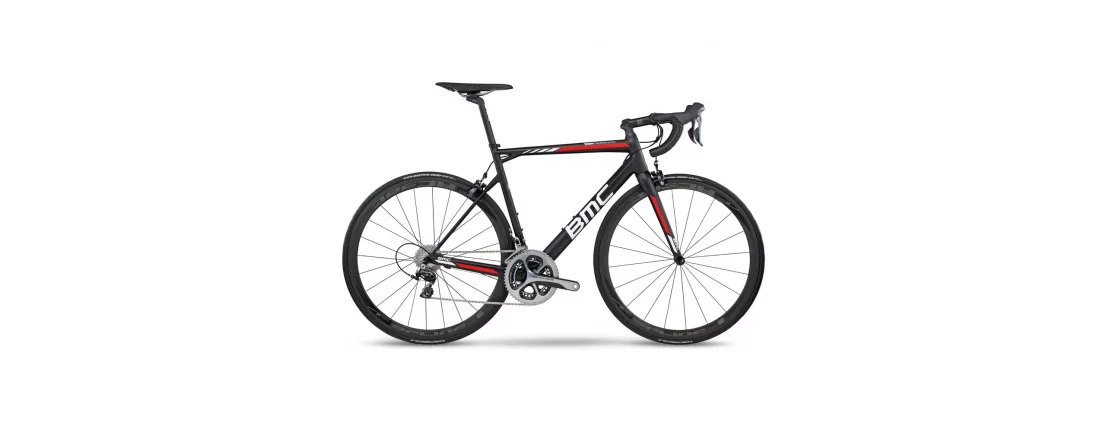

| Рама | Teammachine SLR01 |
| Материал | ACE Technology, 01 Premium Carbon |
| Размеры | 48 / 51 / 54 / 56 / 58 / 61 |
| Вилка | Teammachine SLR, 01 Premium Carbon |
| Трансмиссия | 2x11 |
| Шатуны | Shimano Dura Ace, 52-36T |
| Кассета | Shimano Dura Ace, 11-28T |
| Цепь | Shimano Dura Ace |
| Передн. переключатель | Shimano Dura Ace |
| Задний переключатель | Shimano Dura Ace |
| Шифтеры | Shimano Dura Ace |
| Тормоза | Shimano Dura Ace |
| Руль | 3T Ergonova Team |
| Вынос | 3T ARX 2 Team |
| Штырь подседельный | Teammachine SLR01, "D" 01 Carbon, 15mm offset |
| Седло | Fizik Arione R7 Kium |
| Втулки | DT Swiss 240S - Custom build |
| Обода | DT Swiss RC 38 C Carbon Clincher - Custom build |
| Покрышки | Continental GP4000S II SL, 23mm |

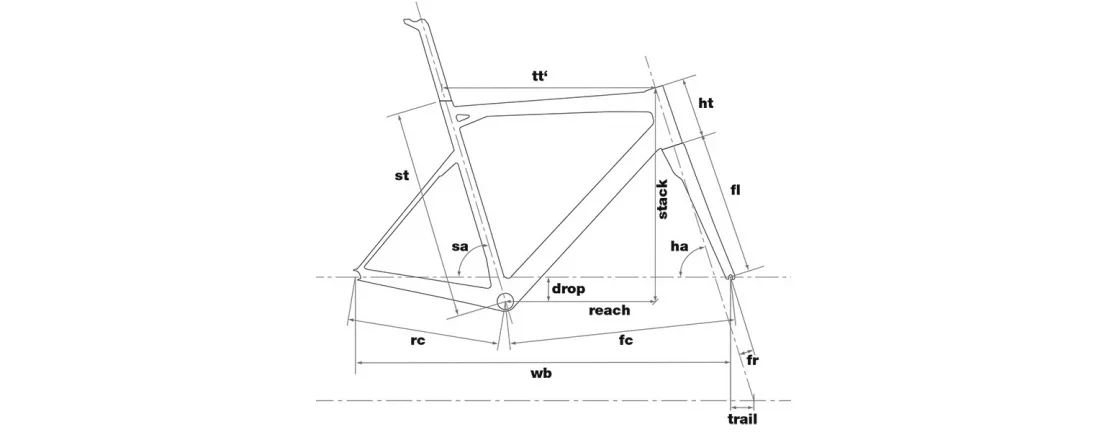

| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| STACK MM | 506 | 530 | 550 | 565 | 584 | 608 |
| Reach mm | 370 | 378 | 387 | 392 | 402 | 410 |
| Seat tube st mm | 475 | 505 | 535 | 555 | 575 | 605 |
| Top tube tt‘ mm | 520 | 535 | 550 | 560 | 575 | 590 |
| Head tube ht mm | 108 | 128 | 148 | 163 | 183 | 208 |
| Seat angle sa ° | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Head angle ha ° | 70.5 | 72 | 72.5 | 72.5 | 72.5 | 72.5 |
| Rear center rc mm | 402 | 402 | 402 | 402 | 402 | 402 |
| Front center fc mm | 571 | 575 | 586 | 596 | 611 | 626 |
| Wheelbase wb mm | 963 | 967 | 978 | 988 | 1003 | 1019 |
| BB drop mm | 69 | 69 | 69 | 69 | 69 | 69 |
| Fork length fl mm | 370 | 370 | 370 | 370 | 370 | 370 |
| Fork rake fr mm | 41.6 | 41.6 | 41.6 | 41.6 | 41.6 | 41.6 |
| Trail mm | 76 | 66 | 63 | 63 | 63 | 63 |
| Crank length mm | 170 | 170 | 172.5 | 172.5 | 172.5 | 175 |
| Stem length mm | 90 | 100 | 110 | 120 | 130 | 130 |
| Stem angle ° | +/- 6 | +/- 6 | +/- 6 | +/- 6 | +/- 6 | +/- 6 |
| Bar width mm | 420 | 420 | 420 | 440 | 440 | 440 |
| Bar drop mm | 123 | 123 | 123 | 123 | 123 | 123 |
| Bar reach mm | 77 | 77 | 77 | 77 | 77 | 77 |
| Post length mm | 300 | 300 | 300 | 300 | 300 | 300 |
| Post offset mm | 15 | 15 | 15 | 15 | 15 | 15 |
| Stand over height mm | 726 | 754 | 779 | 797 | 814 | 843 |
